Moteur3D::UIBaseComponent Class Reference

This class is the base class for all the UI windows components. More...

#include <UIBaseComponent.h>

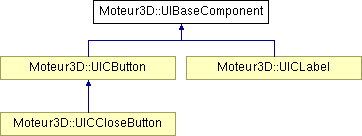

Inheritance diagram for Moteur3D::UIBaseComponent:

List of all members.


Public Member Functions
	UIBaseComponent (UIBaseWindow *window)
	Constructor. Needs the window that will embed the instance.
	~UIBaseComponent ()
	Destructor.
virtual void	SetPosition (int x, int y)
	Sets the component's current position. 0,0 is the top-left corner of the window.
virtual void	SetSize (int x, int y)
	Sets the component's current size.
virtual int	GetWidth ()
	Gets the component's current X size.
virtual int	GetHeight ()
	Gets the component's current Y size.
virtual int	GetPositionX ()
	Gets the component's current X position.
virtual int	GetPositionY ()
	Gets the component's current Y position.
Protected Member Functions
virtual bool	IsMouseInbound (const MouseInformations *mouseInfo)
	checks if the mouse is above the component or not. You might want to change the algorithm if you want non-rectangular components.
virtual bool	WasMouseInbound (const MouseInformations *mouseInfo)
	checks if the mouse was above the component or not. You might want to change the algorithm if you want non-rectangular components.
virtual void	OnDisplay ()=0
	Event called when the component needs to be displayed. Override it if you want custom graphics for your component (and you probably will).
virtual bool	OnMouseButton (const MouseInformations *mouseInfo, MouseButton button, bool buttonDown)
	This function is called when a mouse button is pressed or released inside the window's borders. When this happens, the user interface will check (in focus order) if one of the windows can handle the event. Each window will check, if the mouse is in its bounds, if it affects a component.
virtual bool	OnMouseMove (const MouseInformations *mouseInfo)
	This function is called when the mouse moves inside the window's borders. When this happens, the user interface will check (in focus order) if one of the windows can handle the event. Each window will check, if the mouse is in its bounds, if it affects a component.
void	SendMessage (UICMessage message, int infos)
	Sends a message to the embedding window.
Protected Attributes
int	m_PosX
	Component's position. 0,0 is the top-left corner of the window.
int	m_PosY
int	m_Width
	Component's size.
int	m_Height
UIBaseWindow *	m_Window
	Embedding window.
Friends
class	UIBaseWindow

Detailed Description

This class is the base class for all the UI windows components.

Constructor & Destructor Documentation

Moteur3D::UIBaseComponent::UIBaseComponent ( UIBaseWindow * window ) [inline]

Constructor. Needs the window that will embed the instance.

Moteur3D::UIBaseComponent::~UIBaseComponent ( ) [inline]

Destructor.

Member Function Documentation

virtual int Moteur3D::UIBaseComponent::GetHeight ( ) [inline, virtual]

Gets the component's current Y size.

virtual int Moteur3D::UIBaseComponent::GetPositionX ( ) [inline, virtual]

Gets the component's current X position.

virtual int Moteur3D::UIBaseComponent::GetPositionY ( ) [inline, virtual]

Gets the component's current Y position.

virtual int Moteur3D::UIBaseComponent::GetWidth ( ) [inline, virtual]

Gets the component's current X size.

virtual bool Moteur3D::UIBaseComponent::IsMouseInbound ( const MouseInformations * mouseInfo ) [inline, protected, virtual]

checks if the mouse is above the component or not. You might want to change the algorithm if you want non-rectangular components.

Parameters:

mouseInfo Mouse informations, such as position, button states etc.

virtual void Moteur3D::UIBaseComponent::OnDisplay ( ) [protected, pure virtual]

Event called when the component needs to be displayed. Override it if you want custom graphics for your component (and you probably will).

Implemented in Moteur3D::UICButton, Moteur3D::UICCloseButton, and Moteur3D::UICLabel.

virtual bool Moteur3D::UIBaseComponent::OnMouseButton ( const MouseInformations * mouseInfo,

MouseButton button,

bool buttonDown

) [inline, protected, virtual]

This function is called when a mouse button is pressed or released inside the window's borders. When this happens, the user interface will check (in focus order) if one of the windows can handle the event. Each window will check, if the mouse is in its bounds, if it affects a component.

Parameters:

mouseInfo Mouse informations, such as position, button states etc.

button Mouse button that is concerned.

buttonDown true if the button is being pressed, otherwise false.

Returns:
True if the current window handles the event, false otherwise.

Reimplemented in Moteur3D::UICButton.

virtual bool Moteur3D::UIBaseComponent::OnMouseMove ( const MouseInformations * mouseInfo ) [inline, protected, virtual]

This function is called when the mouse moves inside the window's borders. When this happens, the user interface will check (in focus order) if one of the windows can handle the event. Each window will check, if the mouse is in its bounds, if it affects a component.

Parameters:

mouseInfo Mouse informations, such as position, button states etc.

Returns:
True if the current window handles the event, false otherwise.

Reimplemented in Moteur3D::UICButton.

void Moteur3D::UIBaseComponent::SendMessage ( UICMessage message,

int infos

) [protected]

Sends a message to the embedding window.

Parameters:

message Message identifier.

infos additional informations, may be anything depending on the component.

virtual void Moteur3D::UIBaseComponent::SetPosition ( int x,

int y

) [inline, virtual]

Sets the component's current position. 0,0 is the top-left corner of the window.

virtual void Moteur3D::UIBaseComponent::SetSize ( int x,

int y

) [inline, virtual]

Sets the component's current size.

virtual bool Moteur3D::UIBaseComponent::WasMouseInbound ( const MouseInformations * mouseInfo ) [inline, protected, virtual]

checks if the mouse was above the component or not. You might want to change the algorithm if you want non-rectangular components.

Parameters:

mouseInfo Mouse informations, such as position, button states etc.
